Chord - Dual Wireless Mic System

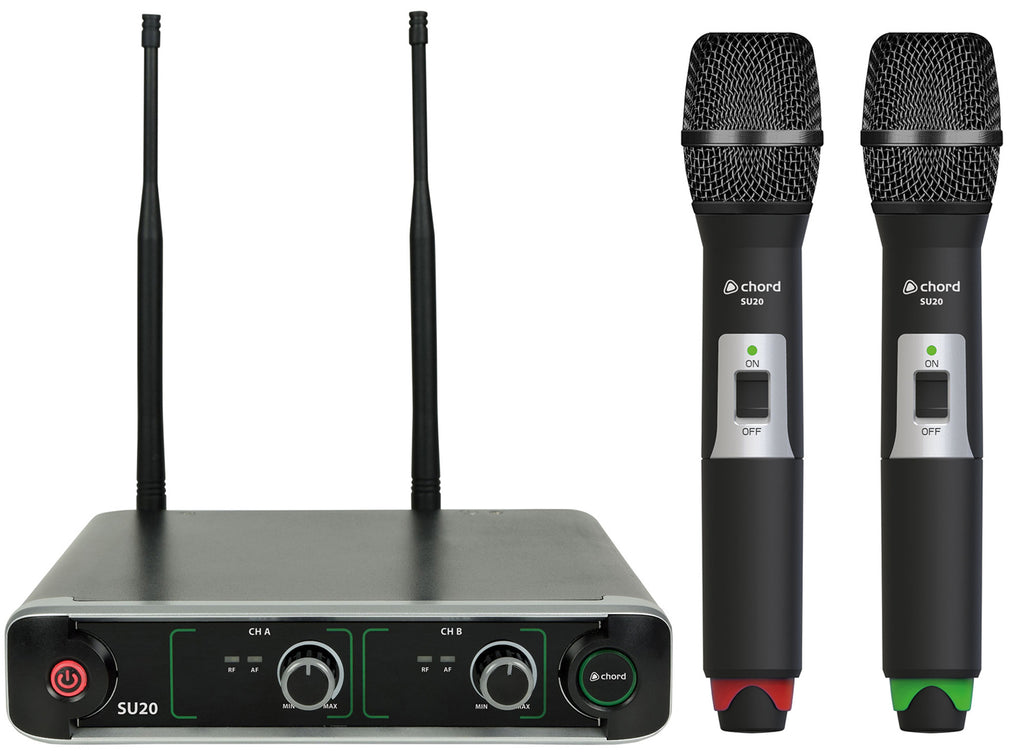

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.
- Up to 2 sets (4 microphones) can be used together
- Available in handheld or beltpack versions with 2 carrier frequency options
- Front or rear mountable antennas
- Compact half-rack receiver
- Supplied with power adaptor and 4 x AA batteries
- Power supply14Vdc 350mA (adaptor supplied)
- Antenna connectionBNC
- Batteries4 x AA (2 per transmitter) included
- Range60m
- Microphone : polar patternCardioid (handheld, neckband or lavalier)
- Output connections2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output impedance2.2k Ohms
- Output level400mV (balanced), 200mV (unbalanced)
- Frequency response50Hz - 18kHz (±3dB)
- S/N ratio>80dB
- THD<0.5% @ 1kHz
- Dimensions : receiver203 x 187 x 42mm
- Weight : receiver845g
